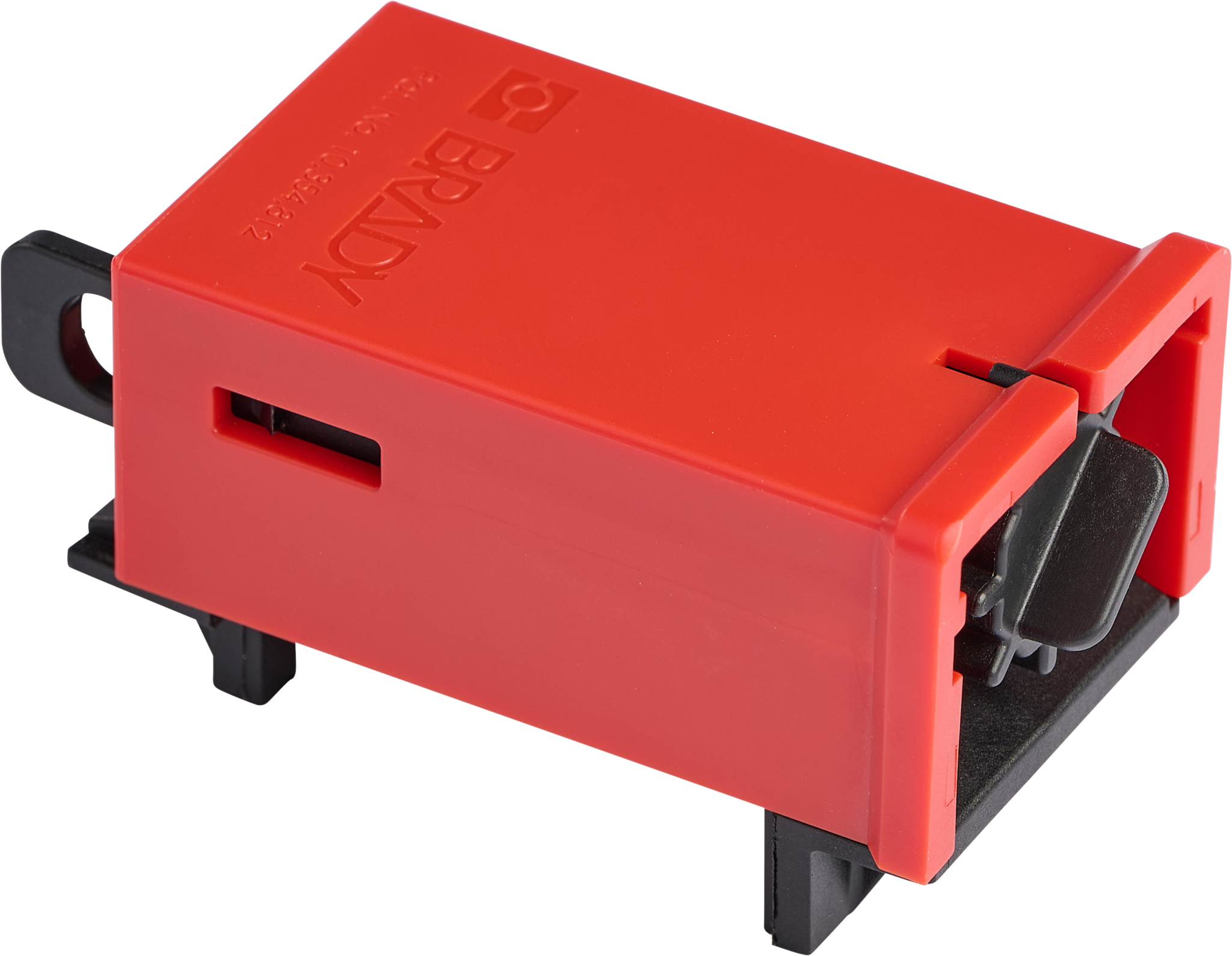

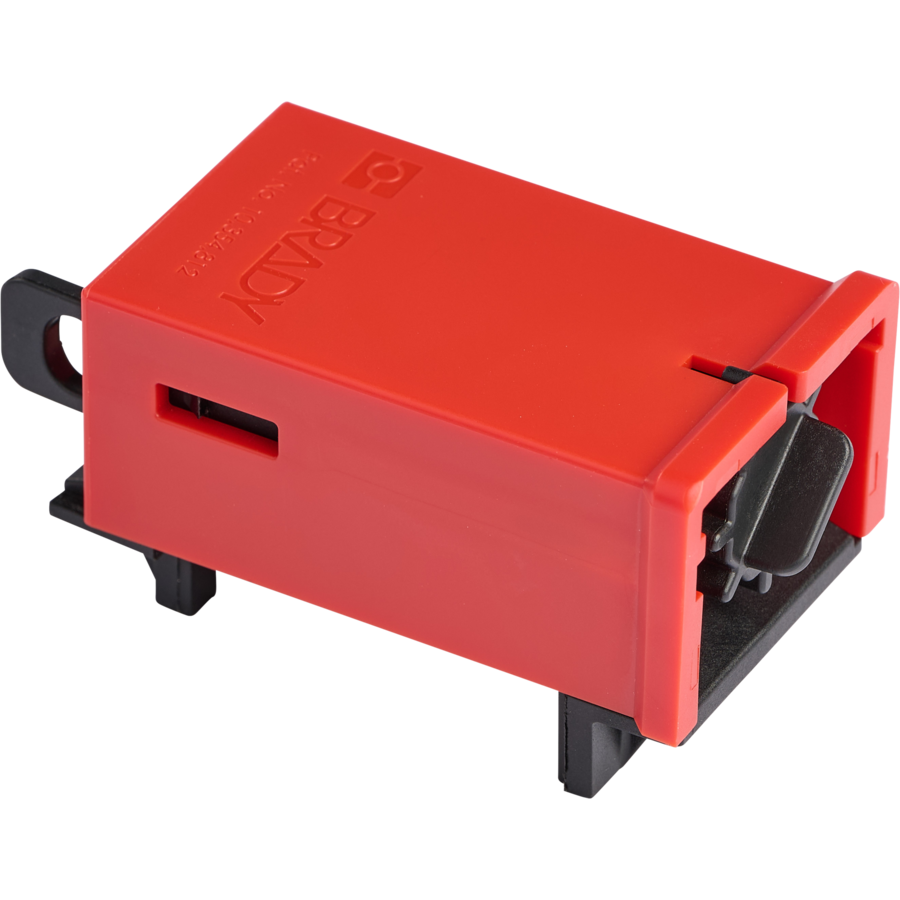

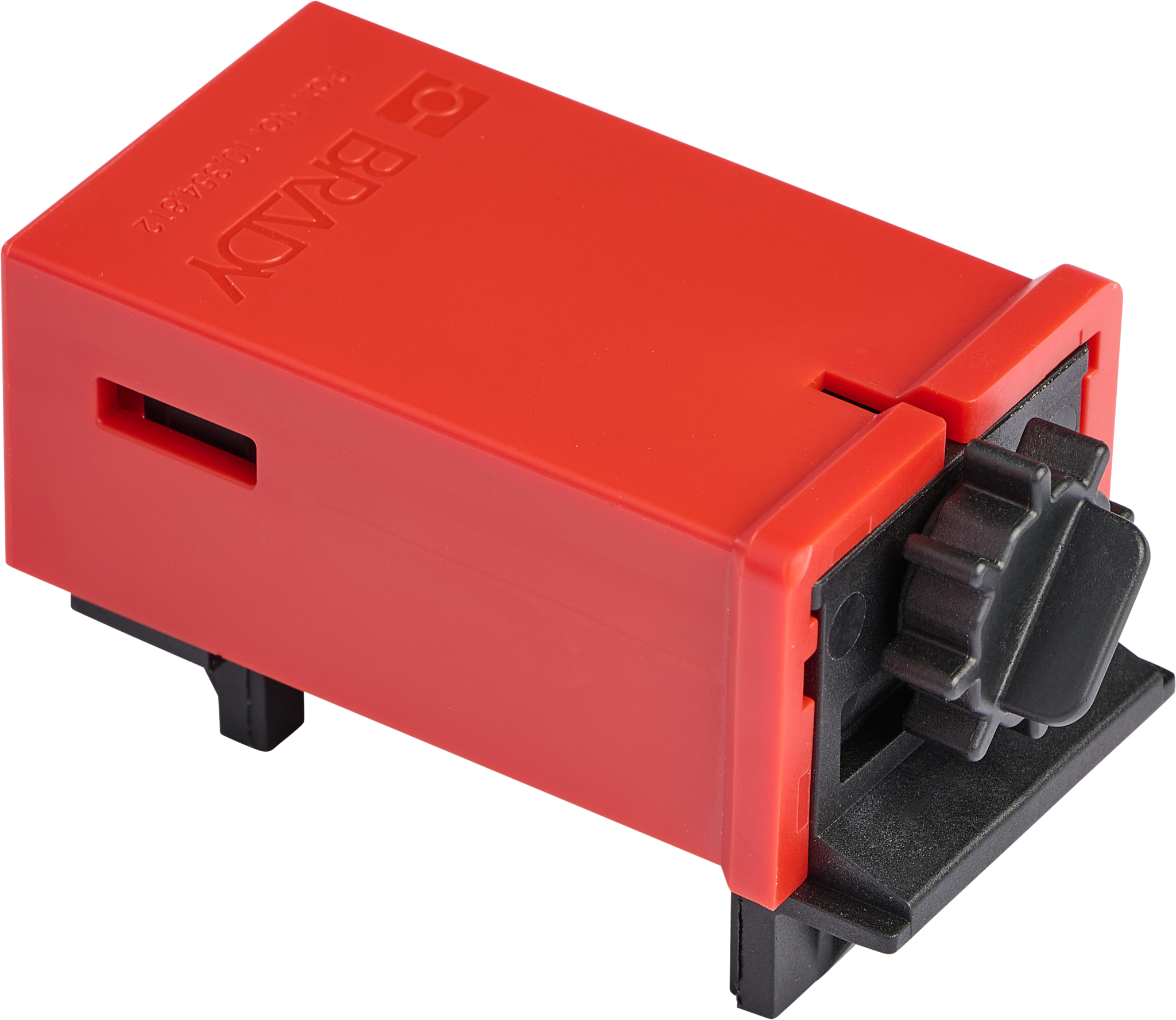

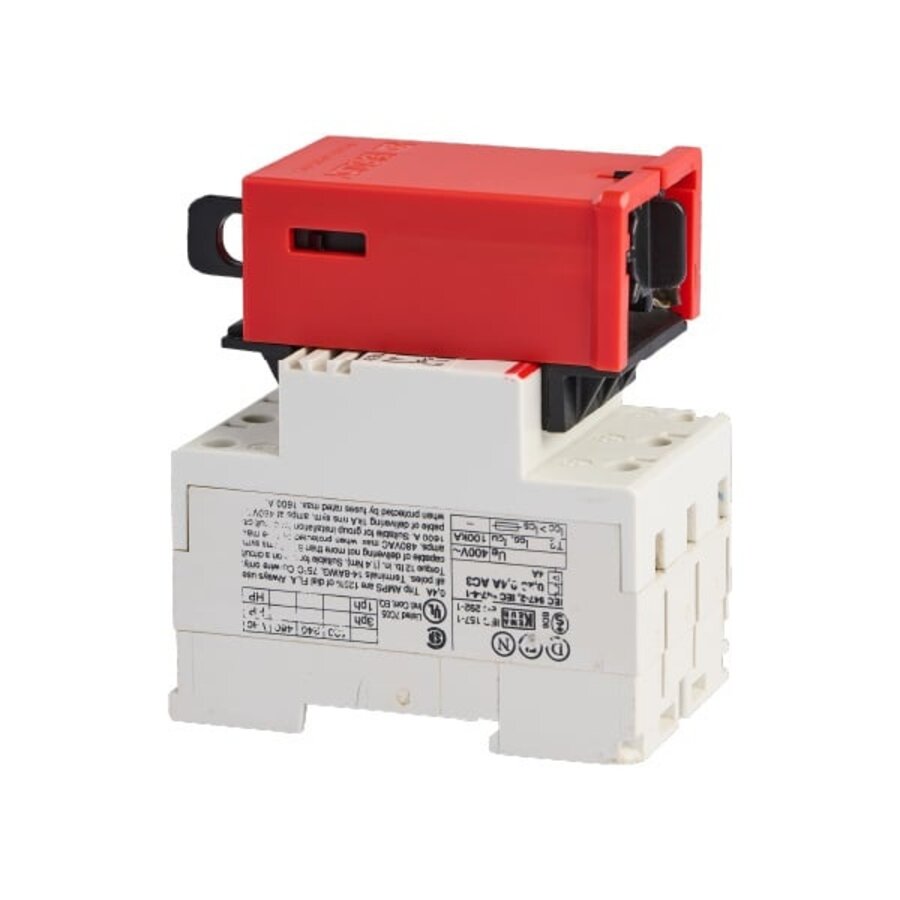

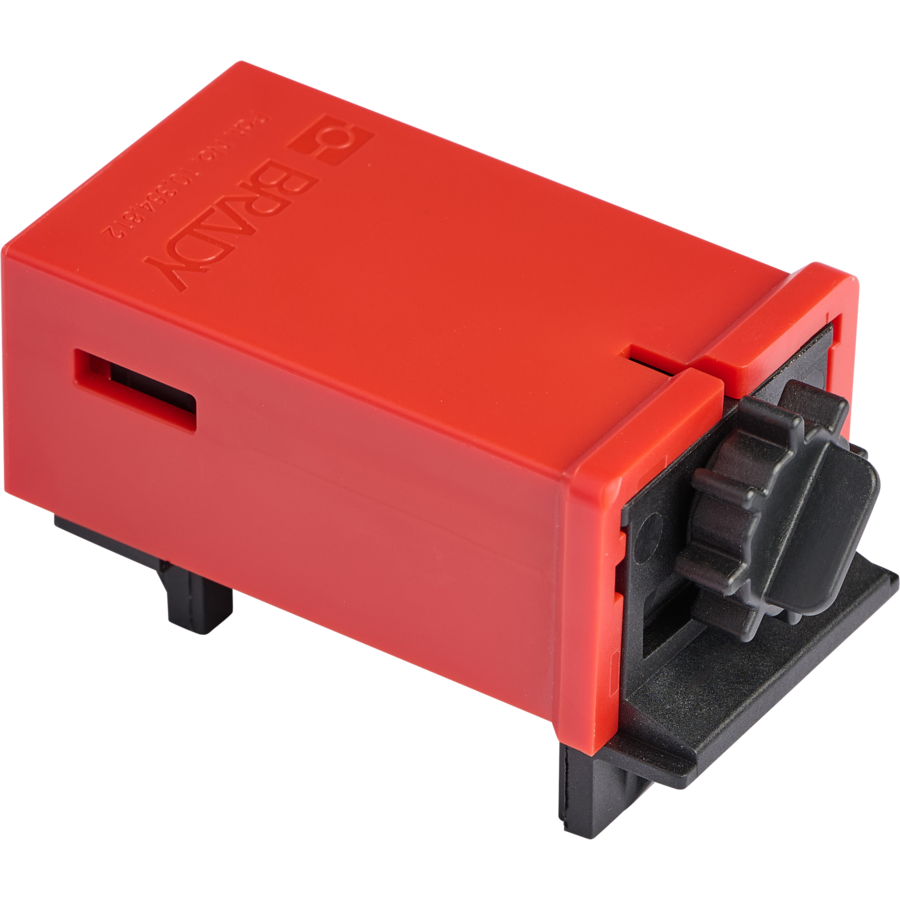

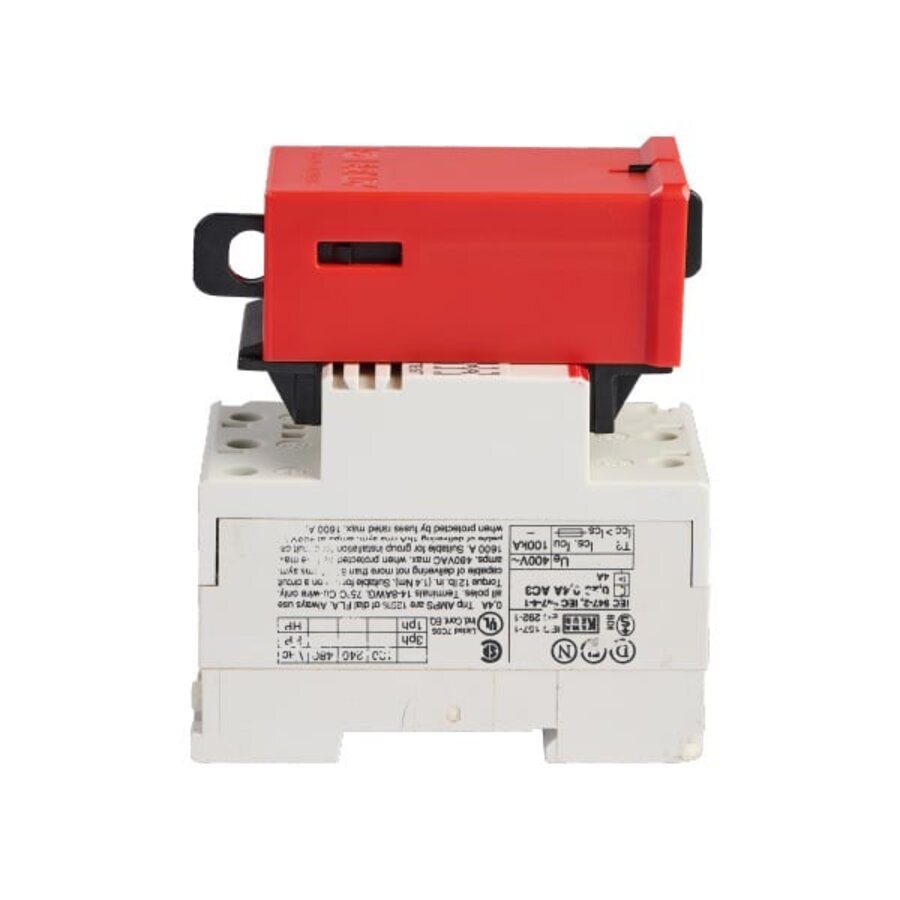

Locking system for rotary circuit breakers from Brady. Made of polypropylene for use in demanding environments. With a universal size and is therefore safe for most motor contactors with a panel height of up to 45 mm. The intuitively designed thumb wheel allows for tool-free installation and removal. Industrial construction withstands challenging conditions. Meets OSHA-compliant Lockout/Tagout requirements. Accommodates 1 security padlock.

• Article number: 177243
• Order reference: ROT1
• Dimensions: WxHxD 38.10x88.9x38.10 mm
• Max. padlock diameter: 7.137 mm
• Colour: red, black
• Max. operating temperature: 80 °C
• Min. operating temperature: -20 °C
• Conforms to: RoHS Directive 2011/65/EU and supplement 2015/863
